IP Cameras › IPC-B122-APF28(40)K
UniarchMini Fixed Bullet
2MP Mini Fixed IR Bullet
IPC-B122-APF28(40)K
2MP fixed IR bullet network camera — up to 30m smart infrared night vision, PoE single-cable install, built-in mic, IP67 outdoor body.
2 MP · 1080P@25fpsUltra 265 · low bandwidthSmart IR · up to 30mPoE / DC12V · dual powerIP67 · outdoorMic · built-in audio
Choose your lens — two models on this page
AF28 (2.8 mm, 101° view) covers a wide area near the camera — doorways, small rooms, shop counters. AF40 (4.0 mm, 84° view) trades width for reach — corridors, driveways, fence lines. Highlighted rows in the spec table below show every difference.
Get Best Price on WhatsAppRequest a quote ↓
Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port
Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (EXW or FOB, each quoted separately), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA
Need the PDF datasheet? Get it on WhatsApp →Compliance:CEFCCRoHSWEEEIP67ONVIF
Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.
The Uniarch IPC-B122-APF28(40)K is a 2MP mini fixed bullet network camera. It provides up to 30 m of smart infrared night vision, MicroSD edge storage, powers over a single PoE cable, and carries an IP67 outdoor rating with a −30 °C to 60 °C working range. It is offered with two fixed lenses: 2.8 mm (AF28, wider view) or 4.0 mm (AF40, longer reach).
Is this the right camera for you?
Plain-language guide for buyers and installers — based only on what this camera actually does.
Shops & storefrontsSee who enters, and the built-in mic records what is said at the counter. AF28 covers the whole shop floor from a corner.
Home gates & yardsSmart IR turns on at night for discreet black-and-white night vision — the camera watches without lighting up the scene.
Warehouse & site perimetersIP67 body and −30 to 60 °C rating survive rain, dust and heat. AF40 watches long fence lines.
Sites needing local backupA built-in MicroSD slot keeps footage on the camera itself — useful as a backup even where an NVR is also recording.
Small offices & receptionUltra 265 compression keeps recordings small — more days of footage on the same NVR disk.
Kiosks & fuel stationsOne PoE cable does power + video — no electrician needed at the pole, quick to install and move.
Not the right pick if you need…
- Full-color night vision — this is IR-only, night video is black & white, not color
- Two-way talk — it has a mic but no speaker
- Wi-Fi — this is a wired RJ45 camera
- Zoom — the lens is fixed (2.8 or 4.0 mm, chosen at purchase)
- Alarm in/out wiring for sirens or sensors
Worried about counterfeits? Order under your own company name.
1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site
Using your own freight forwarder? No problem.
EXW / FOBDelivery to your forwarder's warehouseNo minimum order
How to get a better price
Volume Discount50+ units of a single model
CONTACT USMix & Match DiscountMix any categories & models storewide in one order — no quantity limit
BETTERVerified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you
BESTAll discounts are quoted personally — message me on WhatsApp ↑
Key Features
Complete list from the official datasheet.
High quality image with 1080P, 1/2.9" CMOS sensor
1080P (1920 × 1080)@25/20 fps; 720P (1280 × 720)@25/20 fps
Ultra 265, H.265, H.264
2D/3D DNR (digital noise reduction)
ROI (region of interest) ensures image quality in areas of interest with low bandwidth
Smart IR, up to 30 m (98.4 ft.) IR distance
MicroSD, up to 512 GB
3-axis
Built-in mic
Wide temperature range: −30 °C to 60 °C (−22 °F to 140 °F)
DC 12 V, PoE (IEEE 802.3af) power supply
IP67
Night Vision: Smart IR
Invisible infrared night vision — this model has no warm-light module.
IR MODE
Invisible infrared — discreet black & white night vision
Smart IR up to 30 m (98.4 ft.) at 850 nm. The camera watches without lighting up the scene — nothing shows it is recording. This model has a single IR illuminator only, no warm-light module.
How far can it see? (DORI)
DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Switch the lens buttons above to compare.
Detectsomething is there
45 m147.6 ft
Observewhat is happening
18 m59.1 ft
Recognizesomeone you know
9 m29.5 ft
Identifya stranger's face
4.5 m14.8 ft
How wide a view at each distance
Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.
| Distance | AF28 · 101.1° | AF40 · 83.7° |
|---|---|---|
| 5 m16 ft | 12.2 m39.9 ft | 9.0 m29.4 ft |
| 10 m33 ft | 24.3 m79.7 ft | 17.9 m58.8 ft |
| 15 m49 ft | 36.5 m120 ft | 26.9 m88.2 ft |
| 20 m66 ft | 48.6 m159 ft | 35.8 m118 ft |
| 30 m98 ft | 72.9 m239 ft | 53.7 m176 ft |
Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.
Who uses it, where it goes and how to install it
Written for the Uniarch IPC-B122-APF28(40)K from its own specifications: 2 MP, 2.8 mm or 4.0 mm fixed lens, 30 m Smart IR, MicroSD slot, PoE or 12 V DC.
Who it is for
- Installers on a tight budget — A 2 MP bullet that takes either PoE (IEEE 802.3af) or a 12 V DC adapter and draws at most 3.2 W, so it fits small PoE switches and sites where some runs have no PoE.
- Small shops and kiosks without an NVR — The MicroSD slot records on the camera itself, and the built-in mic adds sound at the counter. Unlike the cheaper ECO models (B132-ECO), this one keeps the card slot.
- Homes, yards and gates — Invisible 850 nm Smart IR up to 30 m gives black-and-white night video without lighting up the yard, so nothing shows the camera is recording.
- Warehouses and site perimeters — IP67 body and a −30 °C to 60 °C working range for outdoor walls and poles; the 4.0 mm version recognizes a known person up to 12.9 m along a fence or driveway.
Where and how to install
- Height and angle — Mount at about 2.5–3.5 m with a shallow downward tilt. Lower is easy to tamper with; much higher shows the top of heads instead of faces.
- Faces need a choke point — Aim at a door, gate or corridor where people walk toward the camera, within the identify distance: 4.5 m with the 2.8 mm lens, 6.4 m with the 4.0 mm lens.
- Keep IR from bouncing back — Do not mount tight under eaves or next to a wall, gutter or pole that sits inside the picture: the IR reflects back and turns the night image white. Keep branches and cobwebs away from the lens.
- Weather, cable joint and surge — The body is IP67, but the RJ45 and 12 V tail is not: put it in the TR-JB05-A-IN junction box and seal the cable entry with the TR-A01-IN gland. Surge protection is 4 kV; on poles or long outdoor runs add a surge protector and earthing.
- Brackets — Pole: TR-UP06-B-IN, or TR-UP06-C-IN-V2 when the junction box is used; outside building corners: TR-UC08-C-V2. The 3-axis mount (tilt 0–90°, rotate 0–360°) lets you level the picture on a sloped wall.
- Power and cable — Use Cat5e or Cat6 copper up to 100 m from the PoE switch or NVR. Where there is no PoE, use a 12 V DC adapter with a Ø5.5 mm plug (12 V ±25%).
2.8 mm or 4.0 mm: what you actually see
Same 2 MP sensor, different lens. The 2.8 mm covers about 12.2 m of width at 5 m, the 4.0 mm about 9.0 m. In return the 4.0 mm reaches about 1.4× farther for faces (6.4 m against 4.5 m) and puts about 107 pixels on each meter at 10 m against about 79 for the 2.8 mm.
| APF28K · 2.8 mm | APF40K · 4.0 mm | |
|---|---|---|
| Horizontal view angle | 101.1° | 83.7° |
| Width covered at 5 m | 12.2 m | 9.0 m |
| Width covered at 10 m | 24.3 m | 17.9 m |
| Pixels per meter at 10 m | 79 px/m | 107 px/m |
| Identify a stranger's face up to | 4.5 m | 6.4 m |
| Recognize someone you know up to | 9.0 m | 12.9 m |
| Observe what is happening up to | 18.0 m | 25.7 m |
| Detect that something is there up to | 45.0 m | 64.3 m |
- Pick 2.8 mm for a shop floor, a small yard or a door seen from close: from 5 m it covers 12.2 m of width.
- Pick 4.0 mm for a gate, driveway or corridor 5–7 m away: faces stay identifiable to 6.4 m and known people recognizable to 12.9 m.
- At night the IR reaches 30 m, so beyond that distance the detect figures (45.0 m / 64.3 m) apply only where there is other lighting.
Widths are calculated from the horizontal view angle (width = 2 × distance × tan(angle ÷ 2)); pixels per meter = horizontal pixels ÷ width at 10 m; face distances are the manufacturer's DORI figures.
Full Specifications
Complete official specifications from the manufacturer's datasheet (technical values in English).
Highlighted rows differ between the two models:AF28 = 2.8 mmAF40 = 4.0 mm
Camera
| Max Resolution | 2 MP |
| Sensor | 1/2.9" CMOS |
| Min. Illumination | Color: 0.02 Lux (F2.1, AGC ON), 0 Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| S/N | > 52 dB |
| WDR | DWDR |
Lens
| Focal Length | AF28 · 2.8 mmAF40 · 4.0 mm |
| Iris | F2.1 |
| Iris Type | Fixed |
| Field of View (H) | AF28 · 101.1°AF40 · 83.7° |
| Field of View (V) | AF28 · 55.0°AF40 · 44.6° |
| Field of View (D) | AF28 · 111.0°AF40 · 89.1° |
DORI
| DORI Distance (Lens) | AF28 · 2.8 mmAF40 · 4 mm |
| DORI Distance (Detect) | AF28 · 45.0 m (147.6 ft.)AF40 · 64.3 m (211.0 ft.) |
| DORI Distance (Observe) | AF28 · 18.0 m (59.1 ft.)AF40 · 25.7 m (84.3 ft.) |
| DORI Distance (Recognize) | AF28 · 9.0 m (29.5 ft.)AF40 · 12.9 m (42.3 ft.) |
| DORI Distance (Identify) | AF28 · 4.5 m (14.8 ft.)AF40 · 6.4 m (21.0 ft.) |
Illuminator
| Supplemental Light | IR |
| Illumination Distance (IR) | Up to 30 m (98 ft.) |
| Wavelength | 850 nm |
| IR On/Off Control | Auto/Manual |
Video
| Video Compression | Ultra 265, H.265, H.264 |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 1080P (1920×1080), max. 25 fps; 720P (1280×720), max. 25 fps · Sub Stream: D1 (720×576), max. 25 fps; 640×360, max. 25 fps; 2CIF (704×288), max. 25 fps; CIF (352×288), max. 25 fps |
| Video Bit Rate | 128 Kbps to 6144 Kbps |
| U-code | Support |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Video Stream | Dual streams |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
| Dewarping | N/A |
| HLC | Support |
| BLC | Support |
| Defog | Digital defog |
Events
| Basic Detection | Motion detection, Audio detection |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication |
Audio
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | N/A |
| Suppression | Support |
| Sampling Rate | 8 kHz |
Storage
| Edge Storage | MicroSD, up to 512 GB (spec table; the datasheet feature summary states 128 GB — for cards above 128 GB, confirm with us before ordering) |
| Network Storage | ANR |
Network
| Protocols | IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, QoS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
| User/Host | Up to 32 users. 2 user levels: administrator and common user |
| Client | APP, Uniarch client |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
Interface
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Built-in Mic | Support |
| Built-in Speaker | N/A |
| WIFI | N/A |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Video Output | N/A |
Certification
| Protection | IP67 (IEC 60529) |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B) |
| Safety | CE LVD (EN 62368-1); CB (IEC 62368-1) |
| Environment | CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU) |
General
| Power | DC 12 V±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max. 3.2 W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | 160 mm × 62 mm × 65 mm (6.3" × 2.4" × 2.6") (L × W × H) |
| Weight | 0.21 kg (0.46 lb.) |
| Material | Graphene + Plastic |
| Working Environment | -30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 4 KV |
| Reset Button | N/A |
| Web Client Language | 1 Language: English |

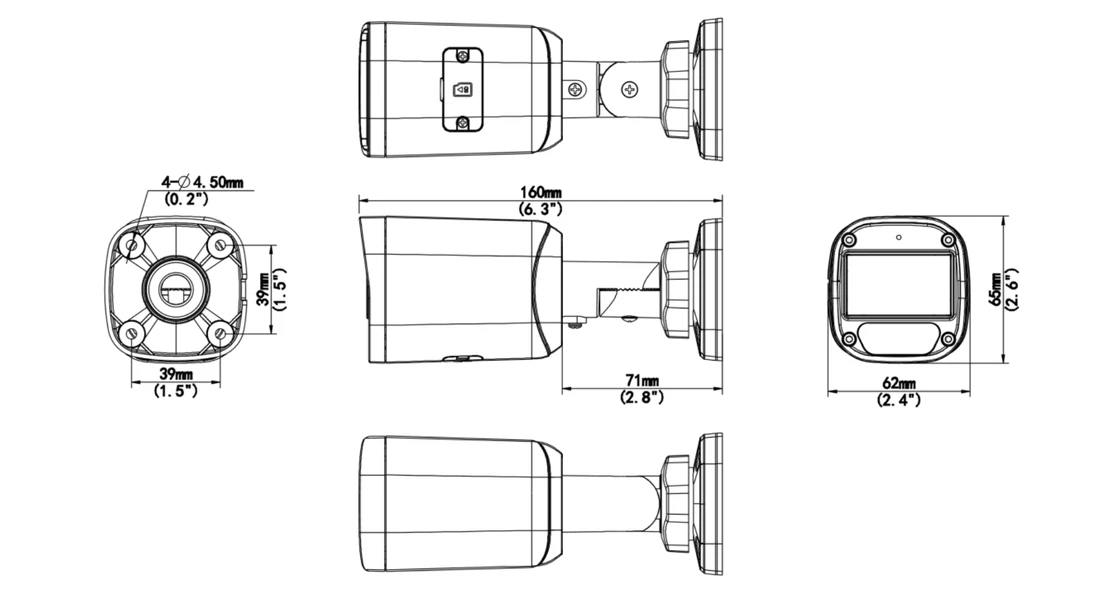

Dimensions
Engineering drawing reproduced 1:1 from the official datasheet.
unit: mm (in.)
| Dimensions | 160 × 62 × 65 mm (6.3" × 2.4" × 2.6") |
| Weight | 0.21 kg (0.46 lb.) |
| Material | Graphene + Plastic |
| Mount adjustment | Pan 0–360° · Tilt 0–90° · Rotate 0–360° |
Optional Mounting Accessories
Order together with the camera to save shipping.
TR-JB05-A-INSmall bullet junction box (rear wiring, square)
TR-UP06-B-INBullet pole mounting bracket
TR-A01-INNPT 3/4" waterproof cable gland
TR-UP06-C-IN-V2Pole bracket for bullet junction box
TR-UC08-C-V2Bullet & dome corner mounting bracket
2MP IR Bullet Camera FAQ — IPC-B122-APF28(40)K
How far can the IPC-B122 see at night?
Smart IR reaches up to 30 m (98 ft) at 850 nm — invisible light, so nothing shows the camera is recording. With IR on it works at 0 Lux, and it holds color down to 0.02 Lux (F2.1, AGC on). The IR-cut filter switches day/night automatically, with auto or manual IR control.
Should I choose the 2.8 mm or the 4.0 mm lens?
The 2.8 mm gives a 101.1 degree horizontal view with DORI detection to 45.0 m and identification at 4.5 m — pick it for entrances and close, wide scenes. The 4.0 mm narrows to 83.7 degrees but detects to 64.3 m and identifies at 6.4 m — better for corridors, fence lines and driveways.
Is it suitable for outdoor use, and how is it powered?
Yes — the housing is IP67 rated against dust and water, so it handles rain-exposed walls and poles. Power and video run over PoE, meaning one Ethernet cable from your PoE switch covers both, which keeps installation cost down on multi-camera CCTV jobs. The bracket adjusts pan 0–360, tilt 0–90, rotate 0–360 degrees.
Does it record audio?
Yes, it has a built-in mic and compresses audio in G.711U or G.711A at 64 Kbps, and audio detection can raise events on sound. Note it is listen-only: two-way audio is not available on this model, so choose another unit if you need to talk back through the camera.
What resolution and bandwidth should I plan for?
The main stream runs 1080P (1920x1080) at up to 25 fps, with a D1 sub stream for live walls, both as dual streams. Bitrate is adjustable from 128 to 6144 Kbps, and Ultra 265, H.265 and H.264 with U-code trim storage and bandwidth. Motion detection, 4 privacy masks and 8 ROI areas round out the basics.
Will the IPC-B122-APF28(40)K work with a Hikvision, Dahua or other non-Uniview NVR?
Usually yes for live view and recording: it supports ONVIF Profile S, G and T plus RTSP, which most third-party NVRs and VMS software use. Its own events are only motion and audio detection, and those alarms may not pass to every brand. Tell us your NVR model and we will confirm before you order.
How many days can the IPC-B122-APF28(40)K record on a MicroSD card?
At the maximum 6144 Kbps with continuous recording it writes about 66.4 GB per day, so a 128 GB card lasts about 1.9 days and a 512 GB card about 7.7 days. At 2048 Kbps, a 128 GB card lasts about 5.8 days and a 512 GB card about 23 days; Ultra 265 and motion-only recording stretch this further. The official datasheet lists 512 GB in its specification table but 128 GB in its feature list, so for cards above 128 GB confirm with us first.
Does the IPC-B122-APF28(40)K detect people, or will trees and cats trigger alerts?
It has plain motion detection and audio detection only, with no human or vehicle classification, so moving branches, animals, rain and insects in the IR can trigger it. Reduce false alerts by drawing tight detection areas, lowering sensitivity and keeping plants out of the frame. If people-only alerts matter, the IPC-B132-AF28(40)-ECO has Human body detection 2.0 and the IPC-B124-APF28(40)K adds Ultra motion detection.
IPC-B122-APF28(40)K or IPC-B132-AF28(40)-ECO: which 2 MP bullet should I buy?
Pick the B122 if you need the MicroSD slot, a 12 V DC option or the widest view (101.1° with the 2.8 mm lens). Pick the B132-ECO if every camera goes to a PoE NVR and you want Human body detection 2.0; it is PoE-only, has no card slot and its 2.8 mm view is narrower at 87.8°, but it identifies faces a little farther (5.1 m against 4.5 m). Both have 30 m IR, a built-in mic and IP67.
How do I view the IPC-B122-APF28(40)K on my phone or PC?
The page lists the Uniarch app and the Uniarch client for PC; with a Uniarch or Uniview NVR you normally add the NVR to the app instead of each camera. For direct access, the web interface works without a plug-in in Chrome 57+, Firefox 58+ and Edge 16+. The web interface is in English only, and up to 32 user accounts can be created with administrator or common-user rights.
Ordering questions — samples, shipping, payment, lead time and genuine stock — are answered once on our FAQ page.
Related Solutions & Products
Solution · Manufacturing Plant Security
A factory: gatehouse, production lines, tool cribs, finished-goods dock. A fixed IR bullet like this one covers the gatehouse and the finished-goods dock.
Solution · Gas Station Security
A filling station: forecourt pumps, canopy, shop counter, tanker unloading bay. A fixed IR bullet like this one covers the forecourt pumps and the tanker unloading bay.
IPC-B124-APF28(40)K · 4MP
Same family, 4MP instead of 2MP — the resolution step that decides your storage bill.
NVR301-04B-P4-IQ / NVR301-08B-P8-IQ · 8ch
This camera has to record somewhere: a 8-channel recorder with PoE built in — the box that matches a site of this size.
Request a quote for this product
An engineer replies within 24 hours on working days with model check, price and lead time. No obligation, no newsletters.
Product: IPC-B122-APF28(40)K
For a fast, exact quote tell us: model or requirement · quantity · destination country / port · EXW or FOB · deadline.
