NVR / Recorders › NVR301-04B-IQ / 08B-IQ / 16B-IQ
Uniview (UNV)B-IQ Series · 1× SATA HDD
1-HDD Network Video Recorder · B-IQ Series
NVR301-04 / 08 / 16B-IQ
4 / 8 / 16-channel network video recorder — Ultra 265 compression, 4K HDMI output, records cameras up to 12MP, built-in Smart Function with face and vehicle detection.
12MP · max recordingUltra 265 · low storage4K HDMI · + VGA simultaneous1× SATA · up to 24 TBONVIF · certified38 languages · local interface
Choose your size — three models on this page
Rule of thumb: count your cameras, then leave room to grow — a shop with 3 cameras runs happily on the 04B-IQ; pick the 08B-IQ or 16B-IQ if you may add cameras later. Highlighted rows in the spec table below show every difference between the three.
Get Best Price on WhatsAppRequest a quote ↓
Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port
Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (EXW or FOB, each quoted separately), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA
How many terabytes for your channels and days? Use the storage calculator →
Need the PDF datasheet? Get it on WhatsApp →Compliance:CEFCCULRoHSWEEEONVIFNDAA
Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.
The Uniview NVR301-B-IQ Series is a 1-HDD network video recorder offered in three sizes: NVR301-04B-IQ (4-ch), NVR301-08B-IQ (8-ch) and NVR301-16B-IQ (16-ch). All three record cameras up to 12MP with Ultra 265 / H.265 / H.264 compression, output simultaneously over 4K HDMI and VGA, and include built-in Smart Function covering face detection, face comparison, vehicle detection (LPR) and traffic monitoring. One SATA bay takes a hard disk up to 24 TB; the local interface is available in 38 languages including Spanish (Latin America), Portuguese (Brazil) and French.
Is this the right recorder for you?
Plain-language guide for buyers and installers — based only on what this recorder actually does.
Small shops & homesThe 4-ch 04B-IQ plus four cameras with built-in Smart Function is a complete kit — one disk, one screen, done.
Growing businessesBuy channels you don't use yet: the 08B-IQ/16B-IQ lets you add cameras later without replacing the recorder.
Remote viewing on phoneP2P protocol built in — the owner checks the shop from a phone app without a fixed IP or network skills.
Local-language interface38 GUI languages including Spanish (Latin America), Portuguese (Brazil), French, Korean and Japanese — your customer operates it in their own language.
Longer video retentionUltra 265 roughly halves file size versus H.264 — the same 24 TB disk keeps months more footage even at 12MP.
Vehicle & people analyticsVehicle Detection (LPR), Motor/Non-Motor Vehicle Search, People Counting and Heat Map turn parking lots and storefronts into searchable, measurable traffic data.
Face-based quick searchFace Detection and Face Comparison feed Face Snapshot Search and Face Comparison Search — investigations that took hours now take minutes.
Not the right pick if you need…
- PoE ports — cameras need a separate PoE switch (we bundle one at combo price)
- A second hard disk or RAID — this series has a single SATA bay
- Gigabit uplink — the network port is 10/100M (fine even at 80 Mbps total bandwidth)
- Alarm in/out wiring for sirens or sensors — RS485/RS232 and alarm terminals are not present on this model
- Full Smart-feature channel counts with third-party cameras — deepest face/vehicle AI (up to 8-ch) requires Uniview cameras; normal/third-party cameras are limited to 1-ch face detection, 2-ch SIP or 4-ch UMD
Worried about counterfeits? Order under your own company name.
1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site
Using your own freight forwarder? No problem.
EXW / FOBDelivery to your forwarder's warehouseNo minimum order
How to get a better price
Volume Discount50+ units of a single model
CONTACT USMix & Match DiscountMix any categories & models storewide in one order — no quantity limit
BETTERVerified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you
BESTAll discounts are quoted personally — message me on WhatsApp ↑
Key Features
Complete list from the official datasheet.
Support Ultra 265 / H.265 / H.264 video formats
Support 4 / 8 / 16-channel input
Support HDMI and VGA simultaneous output
Support up to 12 Megapixels resolution recording
Support ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade
Sharper footage. Smarter search.
Two real capabilities from the datasheet that matter every day: higher-resolution recording within a normal storage budget, and built-in AI search across faces, vehicles and people.
12MP RECORDING
Sharper footage, same efficient storage
Ultra 265 compression cuts recording size dramatically versus H.264 — on the same up-to-24 TB disk you can record at up to 12MP and still keep footage for weeks longer than older H.264 systems.
SMART SEARCH SUITE
Face, vehicle and people — all searchable
Built-in Face Detection, Face Comparison, Vehicle Detection (LPR) and People Counting/Heat Map feed AcuSearch, AcuTrack, Face Snapshot/Comparison Search and Vehicle Search — up to 8 channels with Uniview cameras — so an investigation that took hours now takes minutes.
Which size fits your project?
Bars show camera capacity per model. Click the model buttons above to switch — the spec table highlights every other difference.
NVR301-04B-IQlive view split 1/4/6/8/9 · face detection up to 4-ch
4cameras
NVR301-08B-IQlive view split up to 1/4/6/8/9/16 · face detection up to 8-ch
8cameras
NVR301-16B-IQlive view split up to 1/4/6/8/9/16 · face detection up to 8-ch
16cameras
Who uses it, where it goes and how to install it
Written for the NVR301-04B-IQ, 08B-IQ and 16B-IQ from the official datasheet: 4, 8 or 16 IP channels, 80 Mbps incoming bandwidth, 1 SATA bay up to 24 TB, 4K HDMI plus VGA, no built-in PoE.
Which size suits which installation
- NVR301-04B-IQ: shops, homes and small offices — Up to 4 cameras on one disk and one screen. With 80 Mbps shared by only 4 channels, each camera can use up to 20 Mbps, so even 12 MP or 4K cameras record at full quality.
- NVR301-08B-IQ: restaurants, clinics and growing businesses — 8 channels with face detection on up to 8 Uniview face-detection cameras; buy it when you have 4–6 cameras today and expect to add more without changing the recorder.
- NVR301-16B-IQ: warehouses, schools and multi-floor sites — 16 channels of 2–4 MP cameras fit comfortably in 80 Mbps (16 × 4 Mbps = 64 Mbps). With 16 cameras on one disk, plan the drive size carefully: see the retention rows below.
- Car parks, gates and retail with Uniview smart cameras — Vehicle detection (LPR) by the camera with up to 5 vehicle picture libraries / 25,000 pictures, plus people counting reports, heat map and POS overlay on all channels for stores.
Where and how to install the recorder
- Desk, shelf or 1U rack — The case is 260 × 222 × 47 mm (1U). Put it on a shelf in a locked office or cabinet, or in a 19-inch rack with the RM-1U-260 tray. Keep it out of reach of visitors so a thief cannot take the recorder with the evidence.
- Keep the disk cool — The recorder works from -10 °C to 55 °C, but the datasheet limits large disks to rooms that do not exceed 40 °C. Leave space around the vents, do not stack other equipment on top, and avoid hot roof spaces or closed metal boxes in the sun.
- Power and UPS — It runs from a DC 12 V / 2 A adapter and has no power switch, so it restarts by itself when power returns. Put the recorder, the PoE switch and the router on one small UPS: the cameras keep recording through short outages and the disk is not hit by sudden power cuts.
- Cameras through a separate PoE switch — There are no PoE ports: cameras plug into a PoE switch, and one cable runs from the switch to the recorder's single 10/100 Mbps RJ45 port. Keep each camera run within 100 m of Cat5e/Cat6 copper, and keep the total camera bitrate under the 80 Mbps incoming limit.
- Disk and screens — Fit one 3.5-inch SATA surveillance-grade disk (up to 24 TB) before powering on and format it in the recorder. HDMI (up to 4K) and VGA work at the same time, so you can drive a monitor at the counter and one in the office; use the rear USB 3.0 port for fast clip export.
Planning table: channels, bandwidth, disk and retention
All three share the same 80 Mbps input, single SATA bay and outputs; what changes is the channel count, how much bandwidth each channel gets when all are used, the decoding capacity and the face-detection channels. One disk holds all cameras, so retention drops as channels are added.
| NVR301-04B-IQ | NVR301-08B-IQ | NVR301-16B-IQ | |
|---|---|---|---|
| IP camera channels | 4 | 8 | 16 |
| Incoming bandwidth (total) | 80 Mbps | 80 Mbps | 80 Mbps |
| Bandwidth per channel, all channels used | 20 Mbps | 10 Mbps | 5 Mbps |
| Hard disk | 1 × SATA, ≤ 24 TB | 1 × SATA, ≤ 24 TB | 1 × SATA, ≤ 24 TB |
| PoE ports | — | — | — |
| Decoding, Smart Off | 2×12MP, 2×4K, 4×4MP @30 | + 8×1080P @30 | + 10×1080P, 16×720P @30 |
| Face detection by NVR (Uniview face cameras) | 4-ch | 8-ch | 8-ch |
| Live view split | 1/4/6/8/9 | 1/4/6/8/9/16 | 1/4/6/8/9/16 |
| Days on 4 TB, all channels at 4 Mbps | 23.1 | 11.6 | 5.8 |
| Days on 24 TB, all channels at 4 Mbps | 138.9 | 69.4 | 34.7 |
- Pick the 04B-IQ for up to 4 cameras, including 4K or 12 MP: each channel can take up to 20 Mbps.
- Pick the 08B-IQ for 5–8 cameras or when you want face detection on all 8 channels with Uniview face cameras.
- Pick the 16B-IQ for 9–16 cameras of 2–4 MP; with 4K cameras on all 16 channels each must stay at or below 5 Mbps.
Retention assumes continuous 24-hour recording at 4 Mbps per camera (a typical H.265 main stream for a 4 MP camera): days = TB × 10^12 ÷ (cameras × 4,000,000 ÷ 8 × 86,400). Ultra 265, lower frame rates or event-only recording give more days; 8 MP cameras at about 8 Mbps give half. The 24 TB maximum applies only if the room stays at or below 40 °C.
Full Specifications
Complete official specifications from the manufacturer's datasheet (technical values in English).
Highlighted rows differ between the three models:NVR301-04B-IQ · 4-chNVR301-08B-IQ · 8-chNVR301-16B-IQ · 16-ch
Decoding
| Decoding Format | Ultra 265, H.265, H.264 |
| Decoding Capability | 04B-IQ · Smart Off: 2×12MP@30, 2×4K@30, 4×4MP@30 | Smart On: 2×4K@30, 4×4MP@3008B-IQ · Smart Off: 2×12MP@30, 2×4K@30, 4×4MP@30, 8×1080P@30 | Smart On: 2×4K@30, 4×4MP@30, 8×1080P@3016B-IQ · Smart Off: 2×12MP@30, 2×4K@30, 4×4MP@30, 10×1080P@30, 16×720P@30 | Smart On: 2×4K@30, 4×4MP@30, 8×1080P@30, 16×720P@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width |
| Audio Compression | G.711A, G.711U |
Network
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4, 802.1x, UPnP |
| Browser (Plugin) | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ |
Video/Audio Input
| IP Video Input | 04B-IQ · 4-ch08B-IQ · 8-ch16B-IQ · 16-ch |
| RCA Audio Input | 1-ch |
| IP Speaker (Peripheral Input) | 16-ch |
| POS (Peripheral Input) | All channels |
Video/Audio Output
| HDMI Output | 4K (3840×2160)/30 Hz, 1920×1080/60 Hz, 1920×1080/50 Hz, 1600×1200/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz, 1024×768/60 Hz |
| VGA Output | 1920×1080/60 Hz, 1920×1080/50 Hz, 1600×1200/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz, 1024×768/60 Hz |
| RCA Audio Output | 1-ch |
| Liveview Display | 04B-IQ · 1/4/6/8/908B-IQ · 1/4/6/8/9/1616B-IQ · 1/4/6/8/9/16 |
| Corridor Mode Screen | 04B-IQ · 3/408B-IQ · 3/4/5/7/9/1016B-IQ · 3/4/5/7/9/10/12/16 |
| Two-way Audio | 1-ch, RCA (using the audio input and output) |
| Snapshot | FTP/Schedule/Event Snapshot; 4-ch snapshot (max. D1 (720×576) video resolution, with D1 snapshot resolution) |
Recording
| Recording Resolution | 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080P / 960P / 720P / D1 / 2CIF / CIF |
| Num of Concurrent Playback | 16-ch |
Smart Function
| Smart by IPC | All channels (up to 8 images/s in total) Face Detection, Face Comparison, Vehicle Detection (LPR), SIP, UMD, Traffic Monitoring |
| Smart by NVR | Face Detection, Face Comparison, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD) |
| Smart by NVR Analyzer Mode | Single Mode (Face Recognition), Single Mode (SIP), Single Mode (UMD), Single Mode (AcuSearch/AcuTrack); modes cannot activate simultaneously, only one mode can activate at a time |
| VCA Search | AcuSearch, AcuTrack, Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map |
| Acu Search Performance | All channels with UNV SIP/UMD Camera |
| Acu Track Performance | All channels with UNV SIP/UMD Camera |
| by NVR (Face Detection capacity) | 04B-IQ · Up to 4-ch with UNV Face Detection Camera | Up to 1-ch with normal camera (UNV and Third-part brand, 1-ch 2MP)08B-IQ · Up to 8-ch with UNV Face Detection Camera | Up to 1-ch with normal camera (UNV and Third-part brand, 1-ch 2MP)16B-IQ · Up to 8-ch with UNV Face Detection Camera | Up to 1-ch with normal camera (UNV and Third-part brand, 1-ch 2MP) |
| Search by Image | Support |
| Vehicle Picture Library | Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total |
| SIP by NVR with normal cameras | Up to 2-ch with normal camera (UNV and Third-part brand, 2-ch 2MP, 1-ch 4MP) |
| UMD by NVR with normal cameras | Up to 4-ch with normal camera (UNV and Third-part brand, 4-ch 2MP, 2-ch 4MP, 1-ch 4K) |
Alarm
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
GUI Language
| GUI Language | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
Hard Disk
| SATA | 1 SATA Interface |
| Capacity | Up to 24 TB for each HDD (the maximum HDD capacity varies with environment temperature and hard disk size; the environment temperature for use should not exceed 40°C) |
External Interface
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| USB | Rear panel: 1 × USB2.0, 1 × USB3.0 |
| RS485 | N/A |
| RS232 | N/A |
| Alarm In | N/A |
| Alarm Out | N/A |
| Power Supply | DC 12 V / 2 A |
| Power Switch | N/A |
Working Environment
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | ≤ 90% RH (non-condensing) |
| Power Consumption (without HDD) | ≤ 12 W |
Dimensions
| Weight (without HDD) | ≤ 2 kg (4.4 lb) |
| Height | 1U |
| Dimensions | 260 mm × 222 mm × 47 mm (10.2" × 8.7" × 1.8") |
Certification
| Certification | CE; FCC; UL; RoHS; WEEE |
| FCC | Part15 Subpart B |
| Compliance | NDAA Compliant |

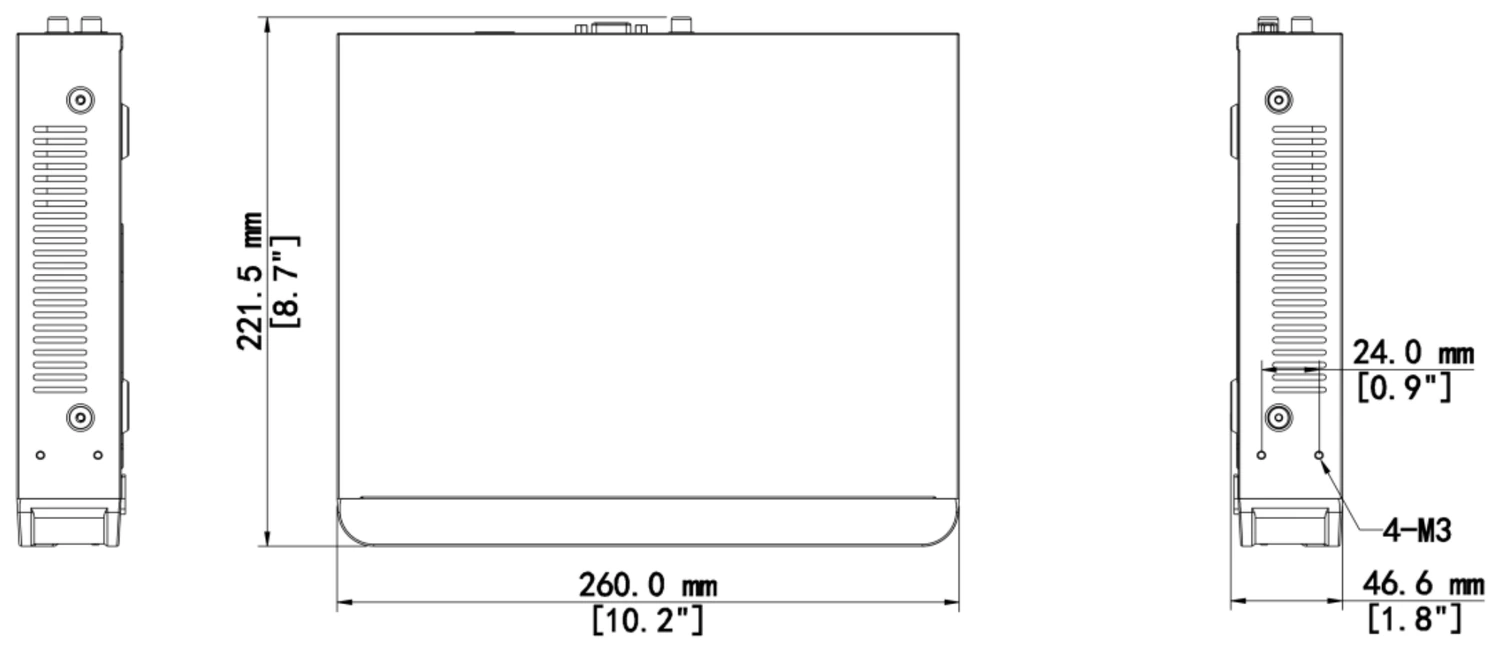

Dimensions
Engineering drawing reproduced 1:1 from the official datasheet.
unit: mm (in.)
| Dimensions | 260 mm × 222 mm × 47 mm (10.2" × 8.7" × 1.8") |
| Weight (without HDD) | ≤ 2 kg (4.4 lb) |
| Power supply | DC 12 V / 2 A |
| Consumption (without HDD) | ≤ 12 W |
Rear panel — all interfaces
Optional Mounting Accessories
Order together with the camera to save shipping.
RM-1U-2601-HDD 1U NVR rack mount tray
4/8/16 Channel AI NVR FAQ — NVR301-B-IQ
What AI functions are built into this NVR?
Face detection, face comparison, vehicle detection (LPR), smart intrusion prevention (SIP) and Ultra Motion Detection — both camera-side on all channels and NVR-side. Results feed AcuSearch, AcuTrack, face snapshot/comparison search, motor and non-motor vehicle search, plus search by image. Up to 5 vehicle libraries hold 25,000 plates.
How many cameras and at what resolution?
4, 8 or 16 IP cameras depending on the model, recording at up to 12MP per channel with 80 Mbps of incoming bandwidth. With Smart mode off the decoder handles 2×12MP@30 or 2×4K@30 plus 4×4MP@30 for local display, and playback runs up to 16 channels concurrently.
How big a hard drive can I fit?
One SATA bay accepts a surveillance hard drive up to 24 TB (maximum usable capacity varies with ambient temperature and disk model). Combined with Ultra 265 compression, that single bay covers long retention even when recording 16 cameras at high resolution.
Do the AI functions work with third-party cameras?
Yes, within limits: NVR-side face detection runs on 1 channel at 2MP with a normal third-party camera, SIP on up to 2 channels at 2MP (or 1 at 4MP) and UMD on up to 4 channels at 2MP. Full-performance AcuSearch and AcuTrack need UNV SIP/UMD cameras.
Is it suitable for shops with POS systems?
Yes — POS integration is available on all channels, so till text can be tied to video. It also supports 16 IP speakers, 1-channel two-way audio over RCA, and event/schedule/FTP snapshots, which suits retail loss-prevention setups in busy stores.
What display outputs and languages does it support?
HDMI up to 4K (3840×2160) at 30 Hz and VGA up to 1920×1080 at 60 Hz. The GUI covers 38 languages, including Latin American Spanish and Brazilian Portuguese. Remote access supports 128 users over P2P, DDNS, HTTPS, RTSP, SNMP and 802.1x, with 80 Mbps outgoing.
How many 4K (8 MP) cameras can the NVR301-16B-IQ really record?
The limit is the 80 Mbps incoming bandwidth, not the channel count. At a typical 8 Mbps per 4K camera that is 10 cameras (10 × 8 = 80 Mbps); to put 4K on all 16 channels, each must be set to 5 Mbps or less with Ultra 265/H.265. For live view and playback the decoder handles 2 streams at 4K@30 at full resolution, so large split screens use lower-resolution streams.
Do I need a separate PoE switch with the NVR301-08B-IQ, and which one?
Yes. The B-IQ series has no PoE ports, only one 10/100 Mbps RJ45 port, so the cameras need a PoE switch with at least as many PoE ports as cameras (IEEE 802.3af gives up to 15.4 W per port, 802.3at up to 30 W). Connect one switch port to the recorder; a 100 Mbps link is enough because the recorder accepts at most 80 Mbps. If you need PoE in the recorder itself, look at the NVR301-04B-P4-IQ / 08B-P8-IQ or the LP4/LP8 versions.
Which hard drive should I buy for the NVR301-B-IQ, and how many days will it keep?
Use one 3.5-inch SATA surveillance-grade drive (made for 24/7 writing), up to 24 TB; the 24 TB limit assumes a room at or below 40 °C. At 4 Mbps per camera, continuous, a 4 TB drive keeps about 23.1 days for 4 cameras, 11.6 days for 8 and 5.8 days for 16; a 24 TB drive keeps about 138.9, 69.4 and 34.7 days. Motion or smart-event recording and Ultra 265 stretch this further.
Can I watch the NVR301-04B-IQ on my phone without a fixed IP address?
Yes. P2P is in the protocol list, so the recorder is added to the Uniview phone app by scanning its code, with no port forwarding or fixed IP; DDNS and UPnP are also listed for setups that need them. Up to 128 remote users and 80 Mbps outgoing are supported, but in practice the site's internet upload speed decides how many cameras you can watch smoothly at once. Firmware can also be updated over the cloud.
Can face recognition, intrusion detection and AcuSearch run at the same time on the NVR301-B-IQ?
Not when the recorder itself does the analysis. In NVR analyzer mode only one mode is active at a time: Face Recognition, SIP, UMD or AcuSearch/AcuTrack. If the cameras do the analysis (Smart by IPC with Uniview smart cameras), face, vehicle, SIP and UMD events from all channels are received together, up to 8 images per second in total, so for several functions on one site choose smart cameras.
Can I record Hikvision, Dahua or other non-Uniview cameras on the NVR301-B-IQ?
The datasheet expects third-party cameras: it gives smart limits for 'UNV and third-party brand' normal cameras (for example UMD on up to 4 channels of 2 MP). Third-party cameras are normally added over ONVIF, but ONVIF is not named in the datasheet's protocol list, so send us your camera models and we will confirm before you order. For mixed systems plan on basic recording and motion events from other brands, and full smart search from Uniview cameras.
